Owing to our rich industrial experience and knowledge of this domain, we are engaged in offering best in class and supply the Complete Project on Turnkey Basis.

Aluminium wire Plant consists of 3 state of the art Mills. The production line is supposed to use Wire Rod with size of 8mm to 15mm. The allowable tolerance for section dimension of Wire Rod should be in accordance with the regulation of YB-2011-83.

Its capacity ranges from 2.5MT to 4.5MT/hr, with OTT coiler. The metal cleanliness is maintained by degassing to remove entrapped gases and metal filtration systems to remove foreign material. The mills are well equipped to produce international quality wire rods. Process control department ensures that the process is carried out under stringent internal norms.

Production line with annual capacity: 1,30,000 tons.

• Wire Rod size: 8mm to 15mm
• Product specifications: Ø.25-Ø8mm Wire

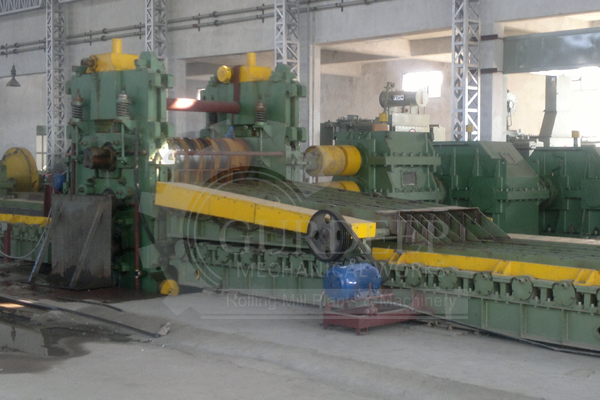

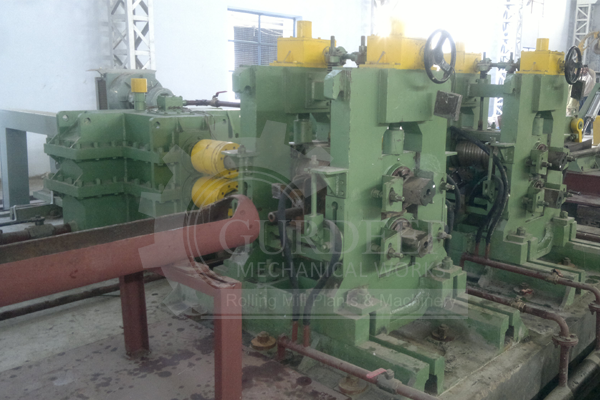

• Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
• Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
• Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.
• Rolling speed: 90 meters/second

• Rough rolling, medium rolling mill: short stress line rolling mill, Closed two-roll mill.
• Pre-finishing rolling mill: cantilever compact mill.
• Finishing mill: cantilever type twistless high-speed heavy duty rolling mill.
• Pinch roller

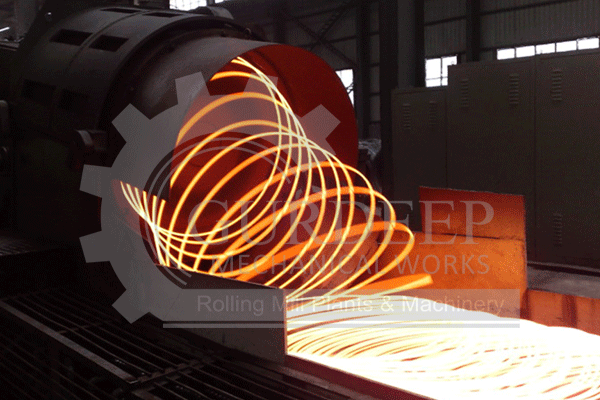

• Wire laying machine
• Flying shears: start/stop flying shears. crank four-link flying shears and rotary flying shears.
• Water cooling system
• Transmission and automation.
