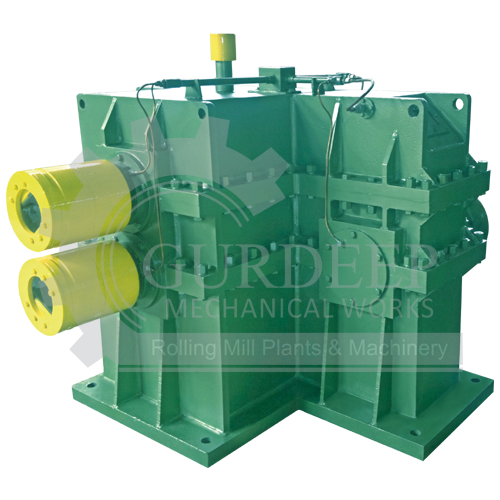

We are amongst the renowned manufacturers of Reduction Cum Pinion Gearbox that works with great accuracy and are highly reliable. These torsionally rigid steel fabricated gearboxes are designed to dampen vibrations. Made using En-19 quality steel forgings, these are duly hardened & grounded and work efficiently at peak loads.
Steel fabricated body horizontal split design. Pinions will be of EN -19 material properly heat treated. Housing will be of steel fabricated. Double helical teeth cut on imported hobbing machine. Shaft ends accurately ground to close machine. Inside piping will be provided for forced lubrication arrangement of bearings and pinion teeth Oil Seal provided at input/output ends of shafts to prevent oil leakage. Pinion enclosed in will be proportioned steel fabricated housing. Transparent window provided on both sides of housing to observe teeth lubrication
| Usage/Application | Industrial |
|---|---|
| Gear Type | Helical |
| Power | 50hp upto 2000hp |
| Mounting | Foot |
| Orientation | Horizontal, Vertical |
| Output | 0-2000 |
| Input Speed | 0-2000 |
Our Reduction Cum Pinion Gear Boxes find applications in various industrial sectors such as cement plants, sugar mills, sponge iron plants fertilizer plants, thermal power station, mineral plants and chemical plants.
